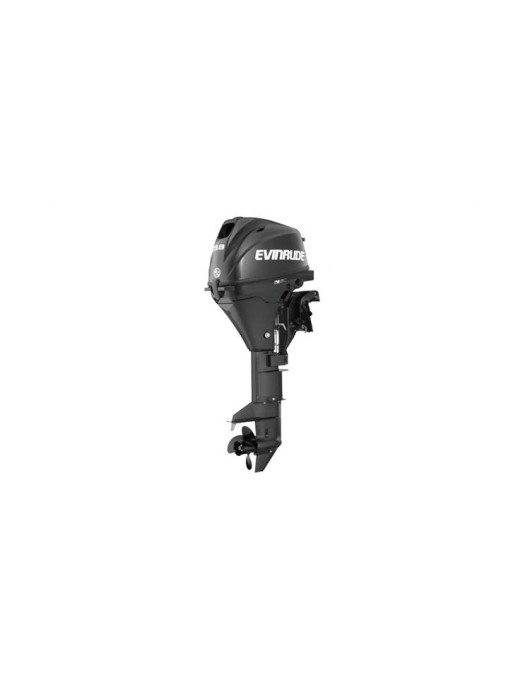

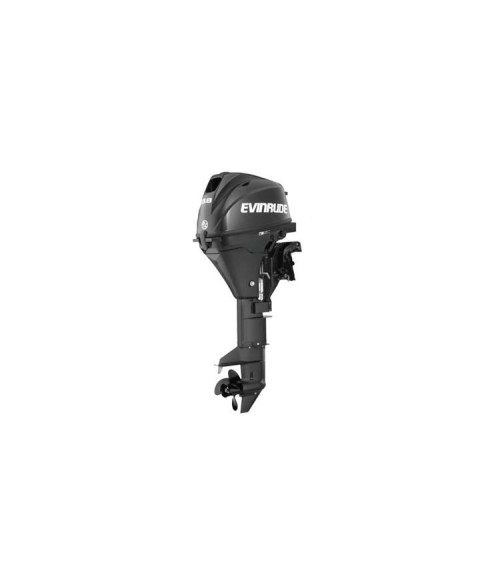

EVINRUDE PORTABLE ENGINES 9.8 HP E10RGL4 GRAPHITE
Features
- Easy Boating: With a fast-idle choke system for easy and fast starting, Evinrude portable engines make boating that much easier.
- Simple Control: Choose from optional features like front mount shift levers, shallow water drive and power tilt, these engines are made to make your next trip on the water the best ever.
- Compact Performance: These engines have many features to offer in one small package. From an integral fuel tank to a flow-through prop for quiet running, they have everything you need to make your adventure on the water more enjoyable.
Specifications
- Engine Model (Color): E10RGL4 Graphite
- Engine Type: 2-cylinder
- Bore x Stroke - in (mm): 2.17 x 1.73 (55 x 44)
- Displacement - cu in (cc): 12.8 (209)
- Gear Ratio: 2.08:1
- Full Throttle RPM Range: 5000-6000 RPM
- Weight - lbs (kg)*: 84 (38)
- Starting: Rope
- Controls: Tiller Handle
- Fuel Induction: Carbureted
- Alternator Output: Only on Electric Models: 12V, 145W, 6A (Standard on Electric Start Models)
- Steering: Tiller
- Trim Method: Manual
- Shaft Length - in (mm): 20 (508)
- Oil Tank Capacity - fl oz (ml): 27 (800)
- Recommended Oil: Evinrude/ Johnson 5W40 Ultra 4-Stroke Oil
- Recommended Fuel: 87 Octane
- Warranty: 3-Year, Non-Declining
- Emissions Compliance: EPA 2013 / CARB 3 STAR
Engine
- Engine Type
- 2-cylinder
- Bore x Stroke
- 2.17 x 1.73 in. (55 x 44 mm)
- Displacement
- 12.8 cu.in. (209cc)
- Starting
- Rope
Dimensions
- Shaft Length
- 20 in. (508 mm)
- Weight
- 84 lb. (38 kg)
General
- Trim Method
- Manual
- Propshaft Horsepower
- 9.8 hp
- Full Throttle Operating Range
- 5000-6000 rpm
- Gear Ratio / Shift
- 2.08:1
- Fuel Induction
- Carbureted
- Steering
- Tiller
- Warranty
- 3-Year, Non-Declining
Evinrude Portable Engines 9.8 HP E10RGL4 Graphite
- Product Code: EO11076
EVINRUDE PORTABLE ENGINES 9.8 HP E10RGL4 GRAPHITE
Features
- Easy Boating: With a fast-idle choke system for easy and fast starting, Evinrude portable engines make boating that much easier.
- Simple Control: Choose from optional features like front mount shift levers, shallow water drive and power tilt, these engines are made to make your next trip on the water the best ever.
- Compact Performance: These engines have many features to offer in one small package. From an integral fuel tank to a flow-through prop for quiet running, they have everything you need to make your adventure on the water more enjoyable.
Specifications
- Engine Model (Color): E10RGL4 Graphite
- Engine Type: 2-cylinder
- Bore x Stroke - in (mm): 2.17 x 1.73 (55 x 44)
- Displacement - cu in (cc): 12.8 (209)
- Gear Ratio: 2.08:1
- Full Throttle RPM Range: 5000-6000 RPM
- Weight - lbs (kg)*: 84 (38)
- Starting: Rope
- Controls: Tiller Handle
- Fuel Induction: Carbureted
- Alternator Output: Only on Electric Models: 12V, 145W, 6A (Standard on Electric Start Models)
- Steering: Tiller
- Trim Method: Manual
- Shaft Length - in (mm): 20 (508)
- Oil Tank Capacity - fl oz (ml): 27 (800)
- Recommended Oil: Evinrude/ Johnson 5W40 Ultra 4-Stroke Oil
- Recommended Fuel: 87 Octane
- Warranty: 3-Year, Non-Declining
- Emissions Compliance: EPA 2013 / CARB 3 STAR
Engine
- Engine Type
- 2-cylinder
- Bore x Stroke
- 2.17 x 1.73 in. (55 x 44 mm)
- Displacement
- 12.8 cu.in. (209cc)
- Starting
- Rope
Dimensions
- Shaft Length
- 20 in. (508 mm)
- Weight
- 84 lb. (38 kg)
General
- Trim Method
- Manual
- Propshaft Horsepower
- 9.8 hp
- Full Throttle Operating Range
- 5000-6000 rpm
- Gear Ratio / Shift
- 2.08:1
- Fuel Induction
- Carbureted
- Steering
- Tiller
- Warranty
- 3-Year, Non-Declining
- Brand: Evinrude
- Availability: In Stock
