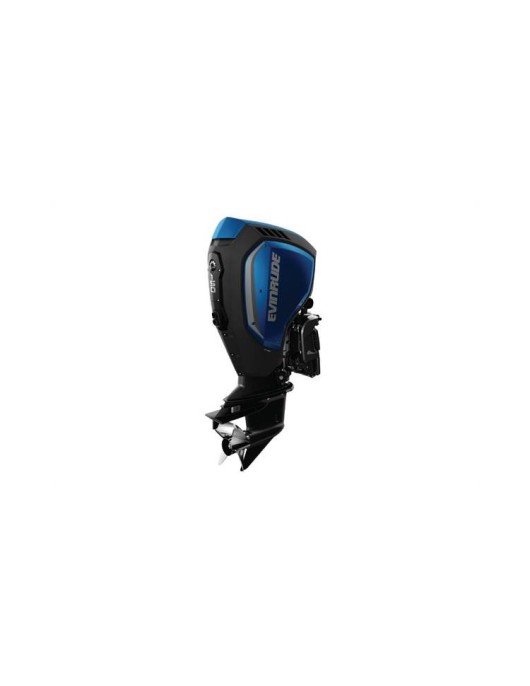

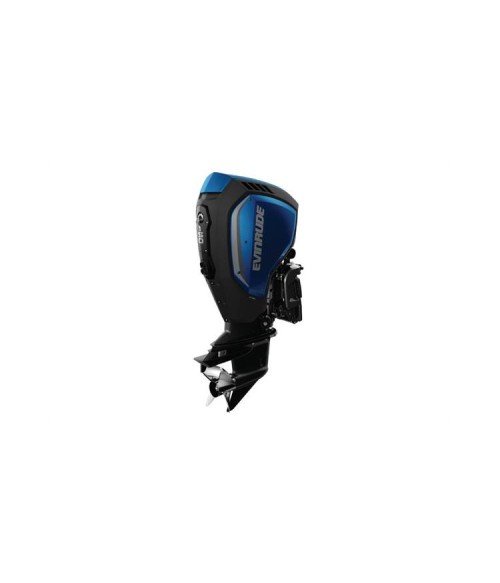

EVINRUDE E TEC G2 ENGINES 150 HP K150GXC

• Engine Type: Inline 3-Cylinder E-TEC G2 D.I.
• Bore x Stroke - in (mm): 3.85 x 3.25 (98 x 82.6)
• Displacement - cu in (L): 114 (1.9)
• Gear Ratio: 2.08:1
• Full Throttle RPM Range: 5000-6000 RPM
• Starting: Electric
• Controls: Icon II
• Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
• Alternator Output*: Net Amps 14 idle / 22 wot
• Trim Method: Power Trim & Tilt
• Trim Range: -6° to 15°
• Tilt Range: 81°
• Lubrication: Multi-Point Targeted Oiling
• Oil Tank Capacity - gal (L): 1.9 (7.2)
• Recommended Oil: XPS Marine XD100
• Recommended Fuel: 87 Octane
• Warranty: 5-Year Engine** / 5-Year Corrosion
• Mounting Centers - in (mm): Minimum 26 (660)
• Color Customization: Over 400 Color Panel Options
• Integrated Features: Dual Axis Rigging / iTrim
• 100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

• Installation: Single† / Multiple
• Color: Slate Gray
• Shaft Length - in. (mm): 25 (635)
• Steering: IHS / Tiebar
• Model No.: K150GXC‡
• Weight - lb (kg): 408 (185)
• Steering Angle: +/- 40°

Engine

Engine Type

Inline 3-Cylinder E-TEC G2 D.I.

Bore x Stroke

3.85 x 3.25 in. (98 x 82.6 mm)

Displacement

114 cu.in. (1.9 L)

Starting

Electric

Dimensions

Shaft Length

25 in. (635 mm)

Weight

408 lb. (185 kg)

General

Trim Method

Power Trim & Tilt

Shaft Rotation

Counter Rotation

Propshaft Horsepower

150 hp

Full Throttle Operating Range

5000-6000 RPM

Gear Ratio / Shift

2.08:1

Fuel Induction

E-TEC Direct Injection with stratified low RPM combustion mode

Alternator

Net Amps 14 idle / 22 wot

Steering

IHS / Tiebar

Warranty

5-Year Engine / 5-Year Corrosion
