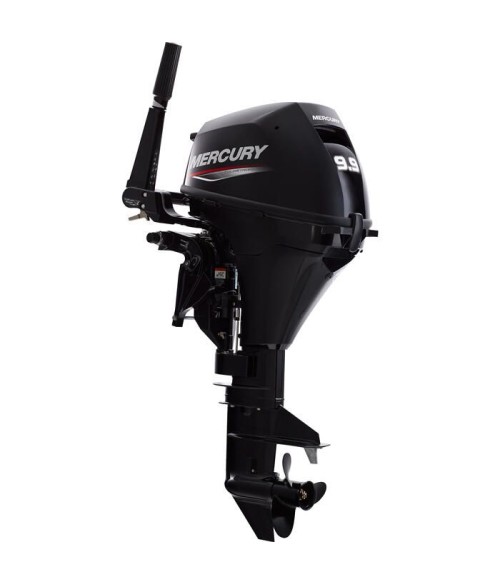

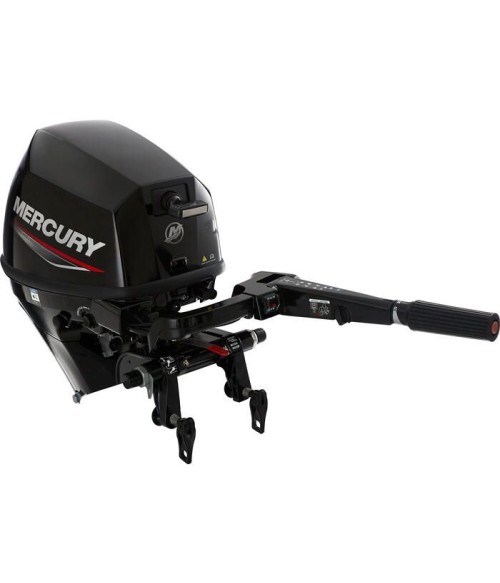

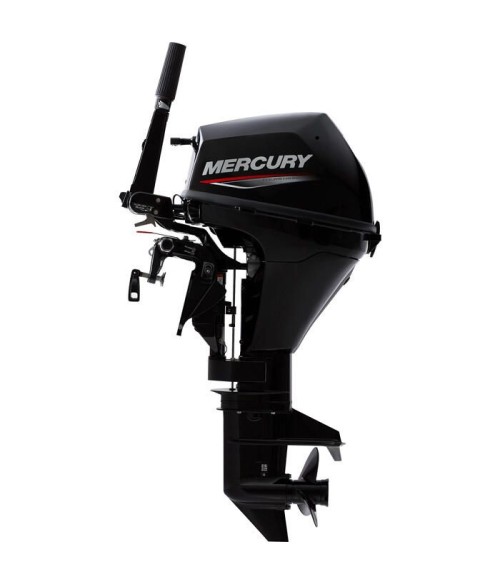

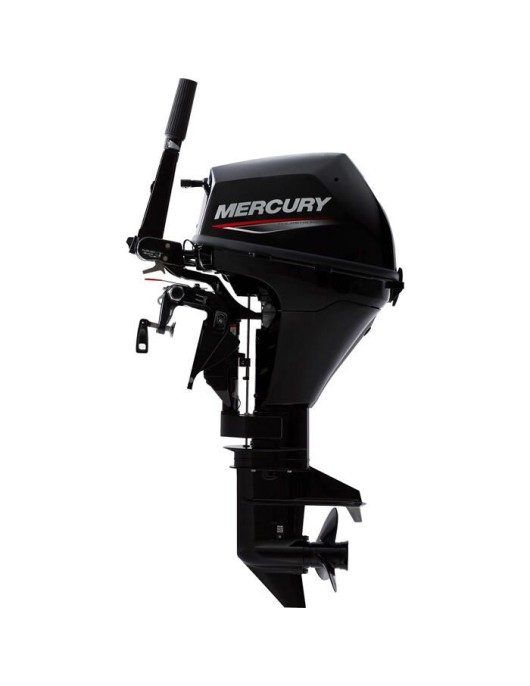

MERCURY 9.9 HP TILLER OUTBOARD MOTOR - 2024

Specifications:

• Power: 9.9 HP (7.3 kW)
• Engine type: Inline 2
• Displacement: 208cc
• Full throttle RPM: 5000-6000
• Fuel induction system: 2 valves per cylinder, single overhead cam (SOHC)
• Alternator Amp/Watts: 6A/76W
• Recommended fuel: 87 octane / up to 10% ethanol
• Recommended oil: Mercury FourStroke Oil 10W-30
• Engine perator warning system:
  • Low oil pressure
  • Over-rev
• Starting: optional rope or electric start
• Steering: Tiller
• Shaft length: 15" (381 mm), 20" (508 mm), or 25" (635 mm)
• Gearcase ratio: 2.08:1
• CARB star rating: 3
• Bore and stroke: 2.16 x 1.73" / 55 x 44 mm
• Ignition: CDI with electronic spark advance
• Fuel system: Carbureted
• Cooling system: Water-cooled with thermostat
• Gear shift: forward, neutral, reverse
• Trim positions: Ratcheting
• Exhaust system: Through prop
• Shallow water drive: Yes
• Shallow water trim range: 16 deg.
• Remote fuel tank standard: 3.2 gal (12 L)
• Fuel line included
• Standard 3-blade aluminum propeller: 8 7/8" x 8 1/2"
• Dry weight:
  • 15" shaft with rope start: 84 lbs
  • 20" shaft with rope start: 86 lbs
  • 25" shaft with rope start: 88 lbs
  • 15" shaft with electric start: 91 lbs
  • 20" shaft with electric start: 93 lbs
• Factory warranty: 3 years. Warranty begins on date of purchase.
